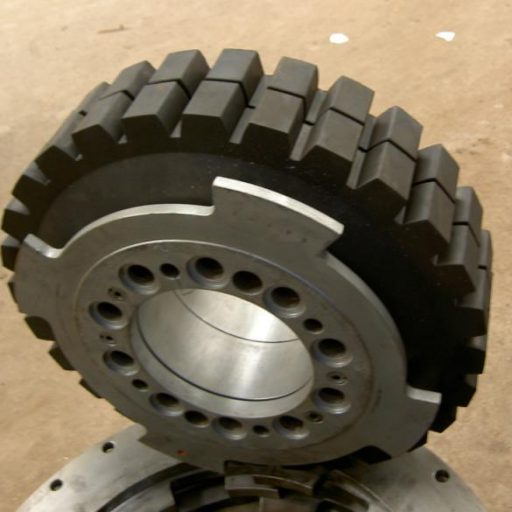

CTLX系列联轴器配400,600.800.900.1200.齿轮箱
| 联轴器型号（Type） | 匹配齿轮箱型号（Gearbox Tpye） | 额定扭矩(Nominal Torque) | 最大扭矩(Max Torque) | 许用 | 许用 | 许用转速(Perm.Speed) | 许用 | 径向刚度(Radial Stiffness) | 静态 | 相对阻尼(Relative Damping) |
| 变动扭矩(Perm.Power loss) | 功率损失 | 径向位移(Perm.Radial Displacement) | 扭转刚度(Static Torsional Stiffness) | |||||||
| Tkn | Tkmax | Tkw | Pkv | Nkmax | ^K | Crdyn | Ctdyn | Ψ | ||
| kNm | kNm | kW | kW | 1/min | mm | kN/mm | kNm/rad | |||
| CTLX4.5 | J400A/HG400 JD400A/HCQ400 T400/HC400 JT400/HCD400 |
4.5 | 11.25 | 1.8 | 0.27 | 2400 | 1 | 3.8 | 25.79 | 1.15 |
| CTLX4.9 | JT400/HCT400 | 4.9 | 12.25 | 1.95 | 0.25 | 2400 | 1.2 | 3.6 | 28.09 | 1.15 |

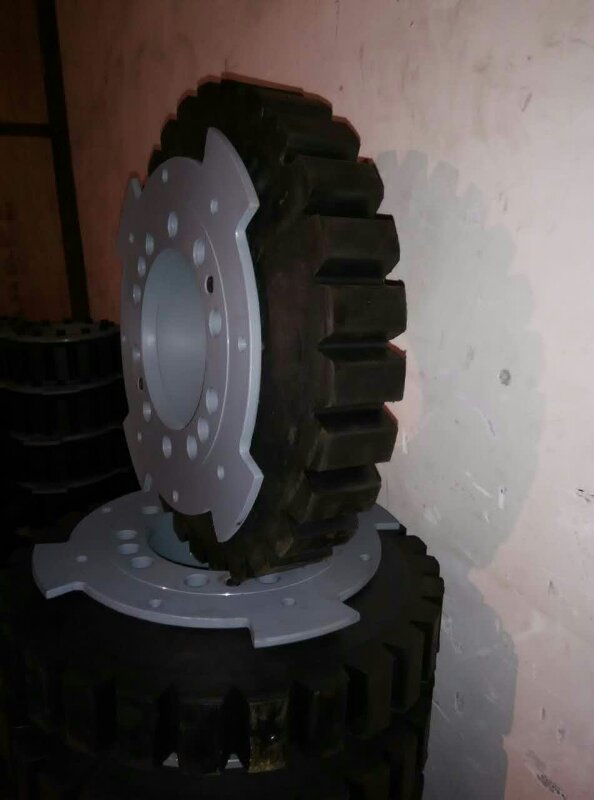

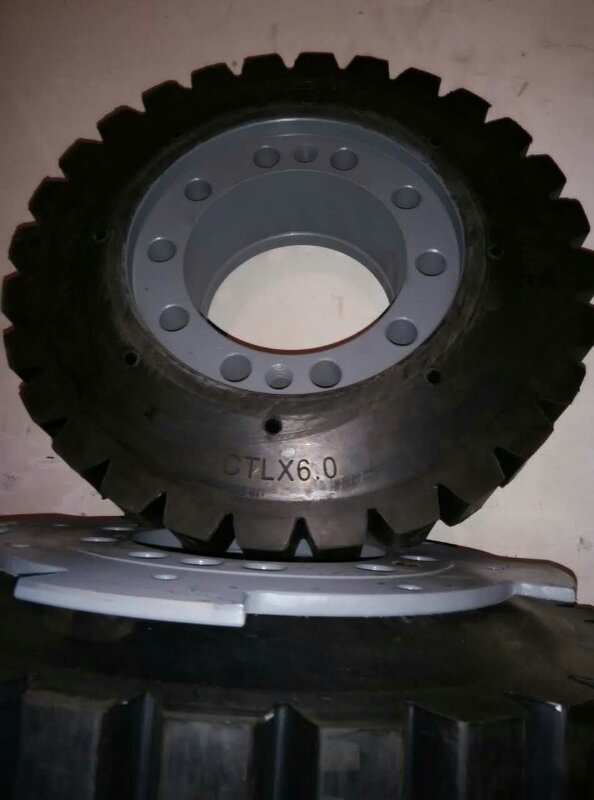

| CTLX6.0 | J600/HCV600 JD600/HCQ600 JT600A/HCQ600 JT600A/HCD600 |
6 | 15 | 2.5 | 0.27 | 2400 | 1.5 | 2.7 | 28.66 | 1.15 |
| CTLX8.6 | 900/800 | 8.6 | 21.5 | 3.2 | 0.275 | 2400 | 1.5 | 4.1 | 41.08 | 1.15 |

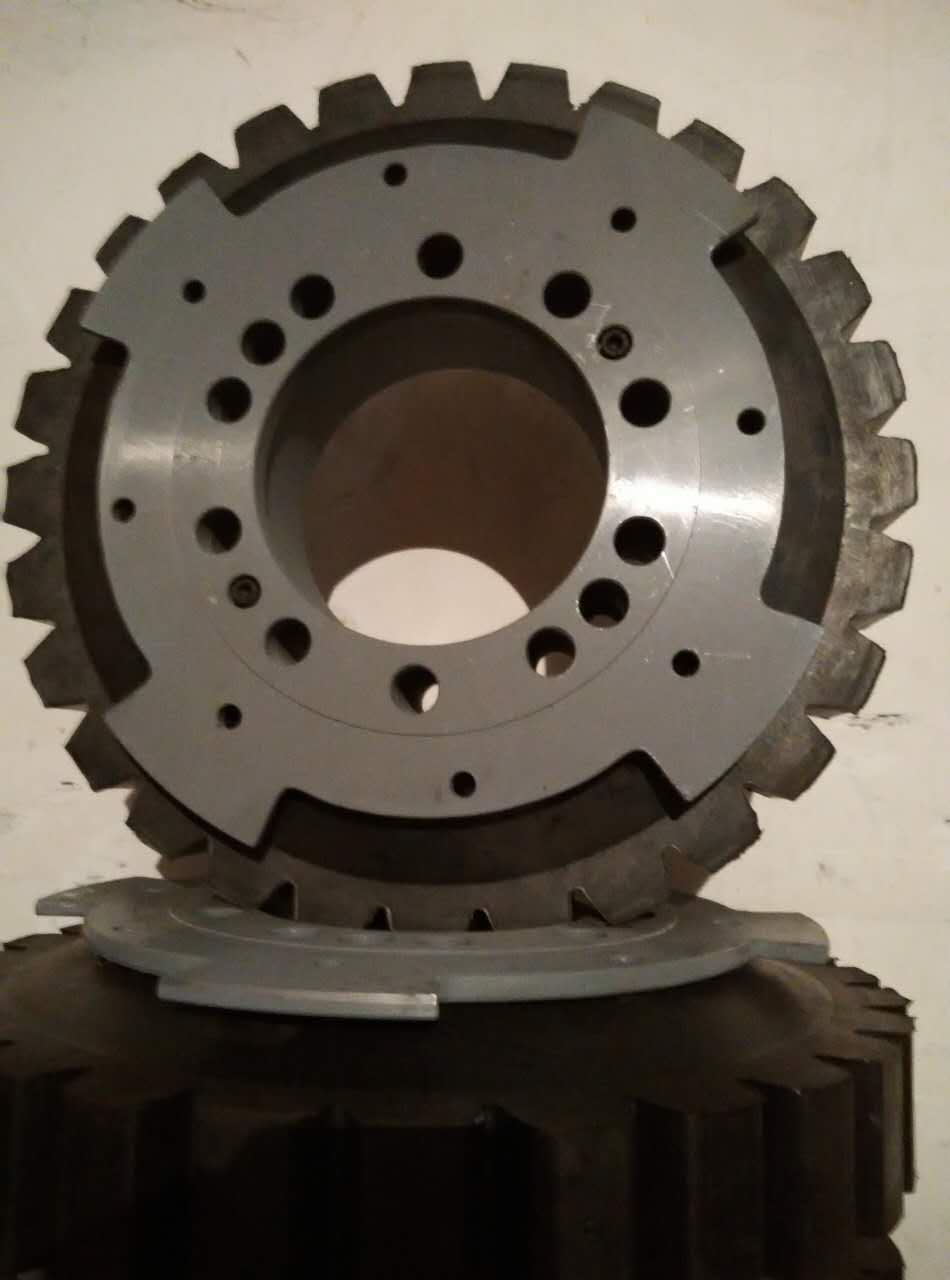

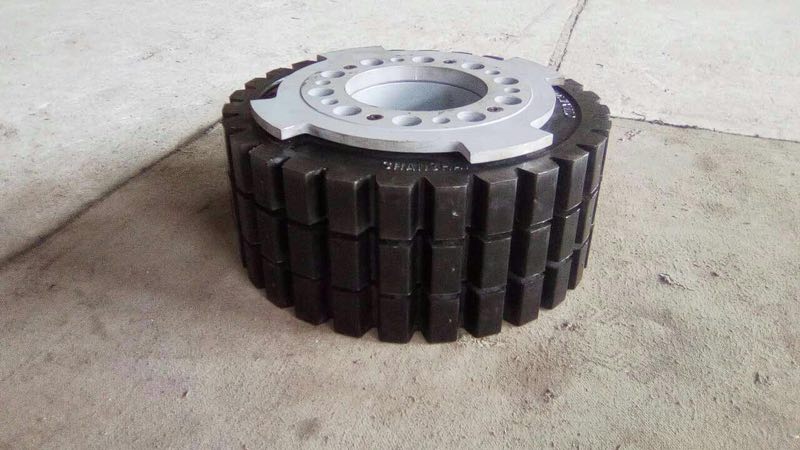

| CTLX12.0 | J1200A | 12 | 30 | 4.8 | 0.35 | 2100 | 1.5 | 4.5 | 57.33 | 1.15 |
